basicDIM Wireless – wireless luminaire communication

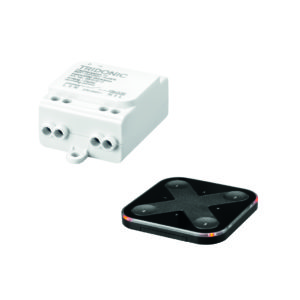

The compact basicDIM wireless control module supports communication for up to 127 luminaires. Perfect for applications where lighting comfort in a cost-effective way is important, without the need of extra wiring.

The compact basicDIM wireless control module can be integrated into existing luminaires easily and establishes a mesh communication network automatically. With wireless communication via Bluetooth 4.0, no DALI wiring is required. The module is fitted with a configurable 1-10-V and DALI interface along with a switched relay contact, and allows dimming functions and even colour temperature controls to be implemented with ease. Groups can also be set up and scenes can be created.
The luminaires is handled via a control panel with eight buttons or via an Tridonics 4remoteBt app that can be used to switch luminaires on and off or for the dimming functions. In addition, light settings can be accessed and colour temperatures set.

The luminaires are automatically scanned for and detected using the free apps for Android or iOS.

The wireless light control supports users with establishing and configuring the lighting control options, enhances lighting comfort and helps save energy.
